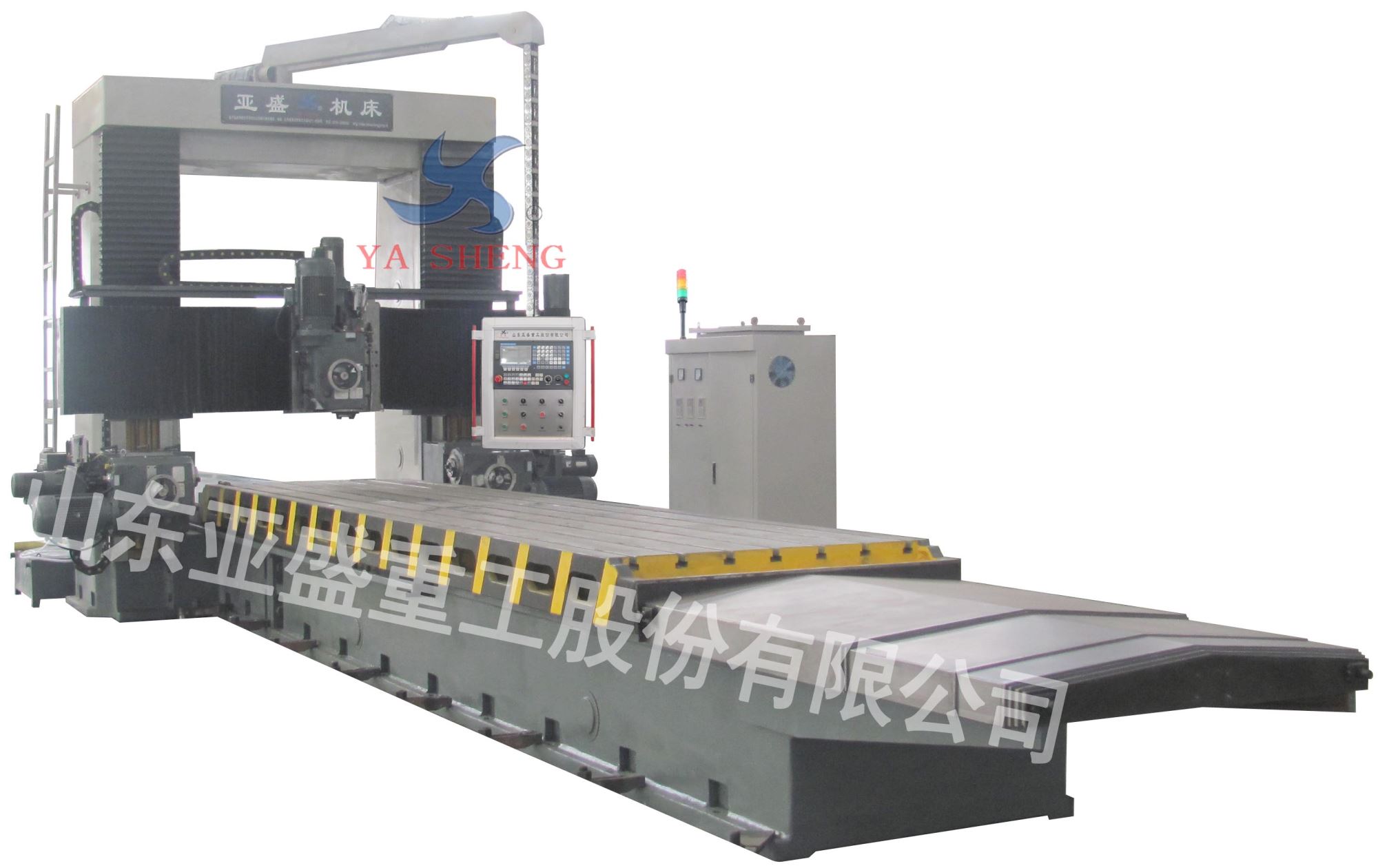

XK2010-50 series of simple CNC gantry milling and boring machine Introduction to machine tools This series of machine tools in the ordinary gantry millingmachine on the basis of the electrical control, transmission system upgrades, transformationwith processing plane, round, oval, diamond and other functions, with cost-effective, highefficiency.
 Basic parts of the process of protection Machine basic parts from the bed, tablecolumn, beams, the overall structure of the gantry, connecting beams and other componentsMachine tool large HT250 high quality alloy wear-resistant cast iron, the vibration aging of afurnace time of a vibration aging a roughing a vibration aging half of the finishing of afurnace time of a vibration aging of a finishing from, to eliminate the workpiece stress toensure that Long-term operation accuracy of the machine.

Guide wear Machine guide rail with "super audio quenching" after grinding treatmenthigh hardness, wear resistance, the table paste guide rails, with high wear resistance, lowfriction, shock absorption and so on. So that the machine can maintain long-term accuracy

Workbench drive Sports mechanical transmission 8m below the trapezoidal screw drive8m above the coiler drive. To achieve low speed, high torque, to ensure smooth milling

Control System The use of digital AC servo control system, including programmable DLccentral processing unit and intelligent power amplifier to achieve the exchange of variablefrequency motor stepless speed regulation, with smooth operation, set accurate, highefficiency.


Main features Milling head with Taiwan Gongyang technology assembly, at the sametime with boring, milling, drilling and other functions, configuration right angle milling headuniversal milling head and other accessories can be achieved after a five-face processing tomprove processing quality and efficiency.


Digital display system The machine can be equipped with magnetic grating, grating, balgrid and other displacement measurement unit to the displacement of the axis of the digitadisplay (user-defined).
